Urban electric bike
Joybold set out to design an Urban electric bike for the American market, where cycling is rapidly gaining traction as cities adapt with new bike lanes and infrastructure. The challenge was to create a rugged yet sophisticated electric bicycle that could handle both daily urban commutes and weekend recreational rides.
The approach:
Unlike many e-bikes that lean toward utilitarian or purely sporty aesthetics, Joybold wanted an iconic design that balanced functionality with style, appealing to commuters, families, and leisure riders alike. Gomotiv was tasked with developing a product that would stand out while fitting seamlessly into the growing U.S. e-bike market.

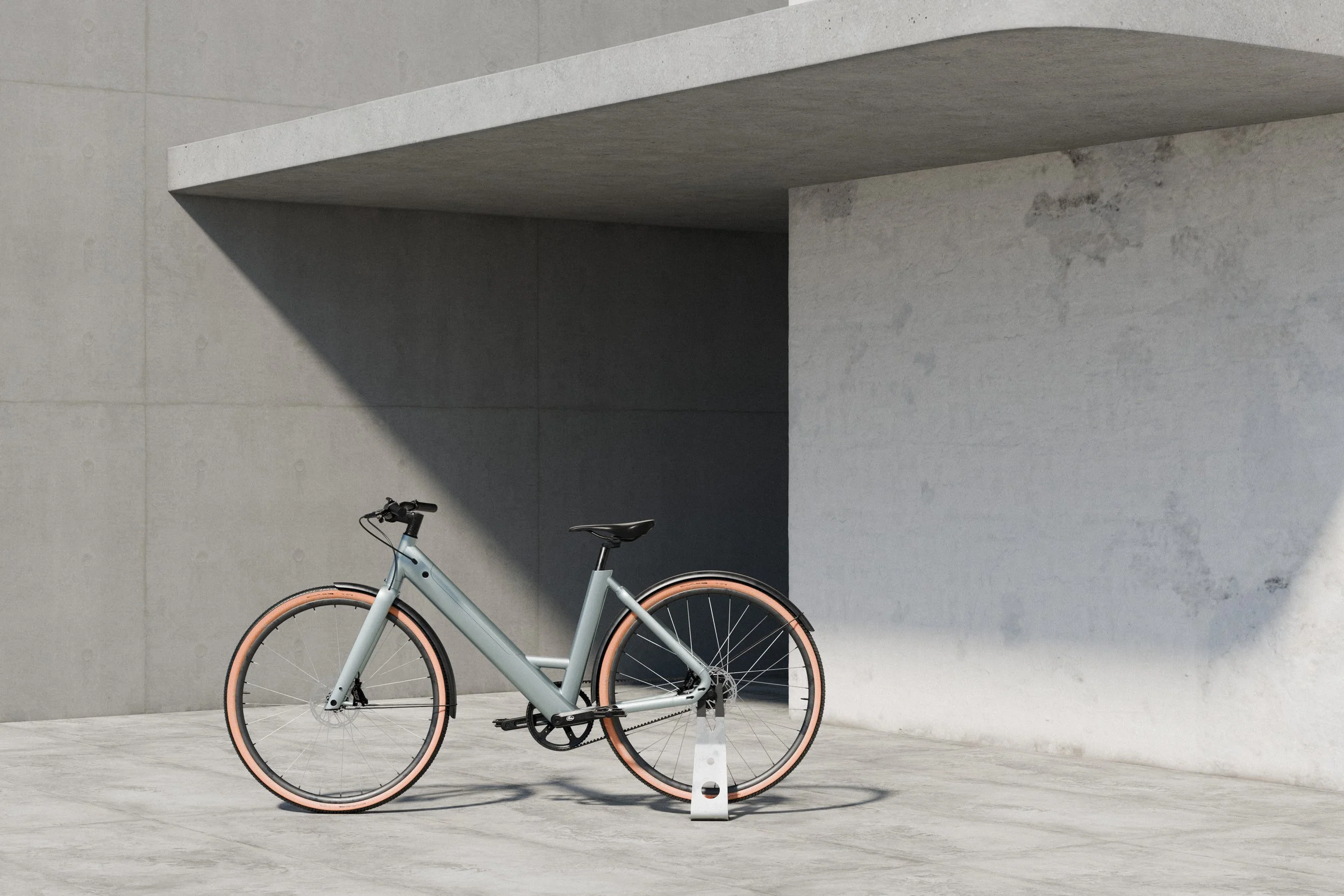

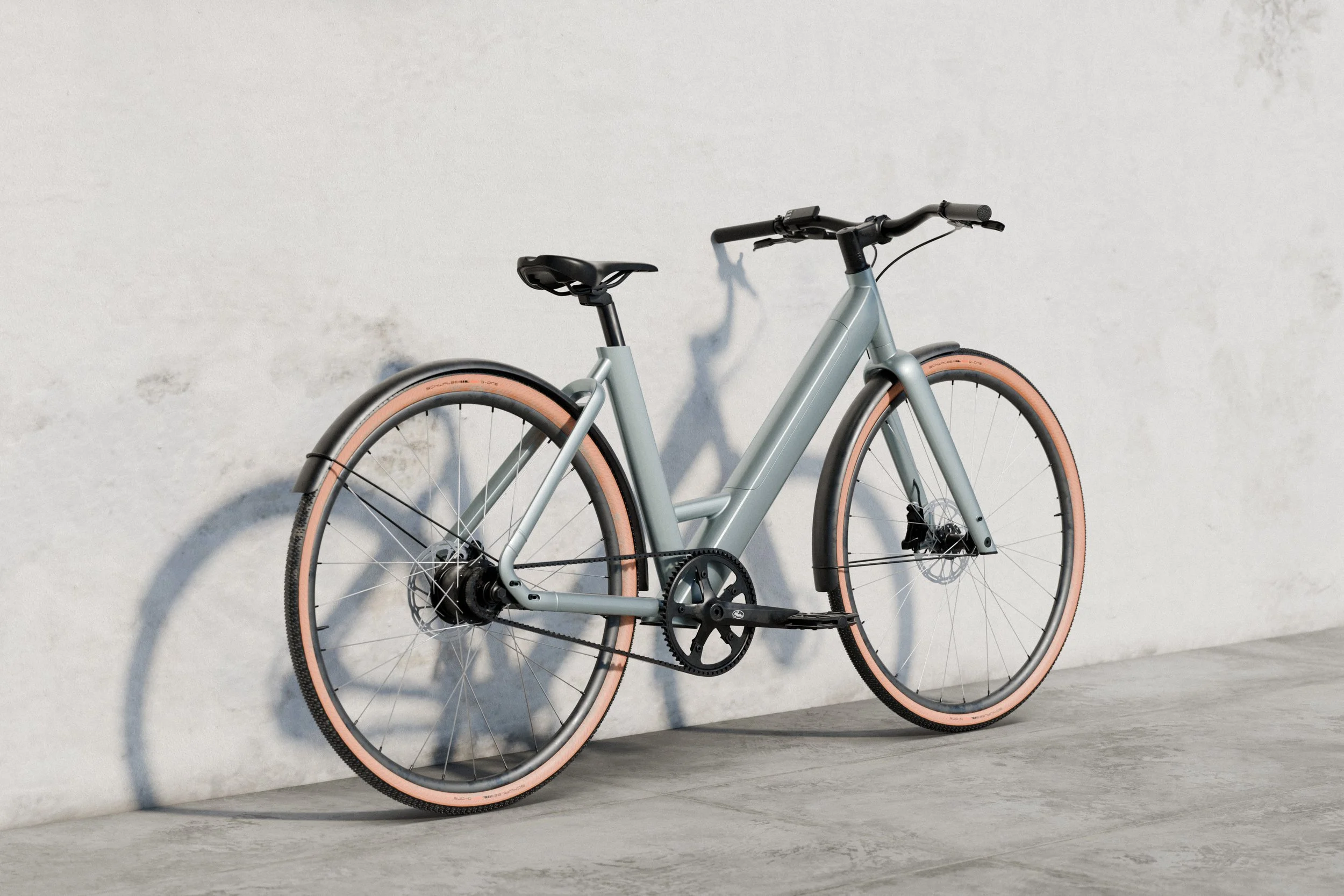

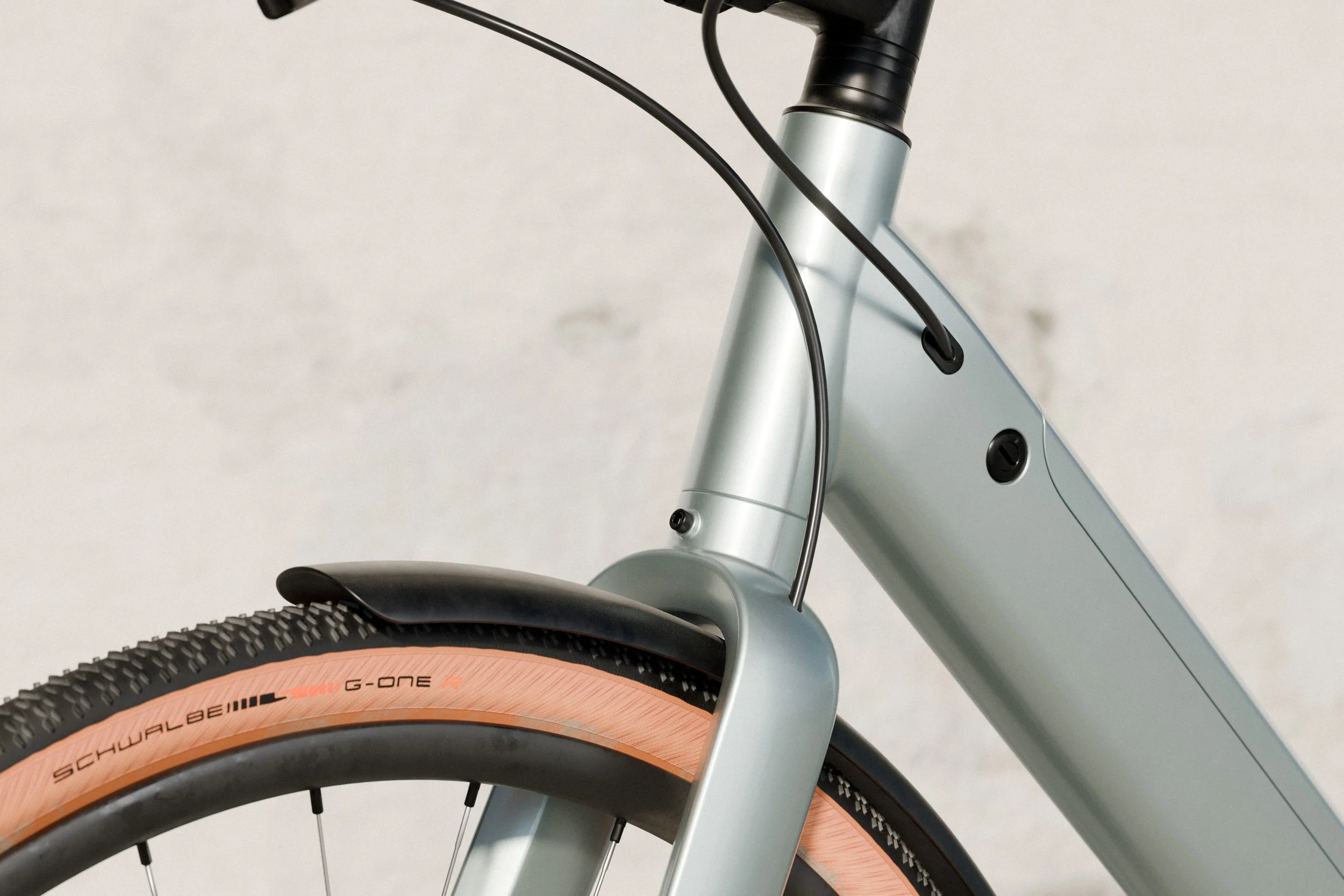

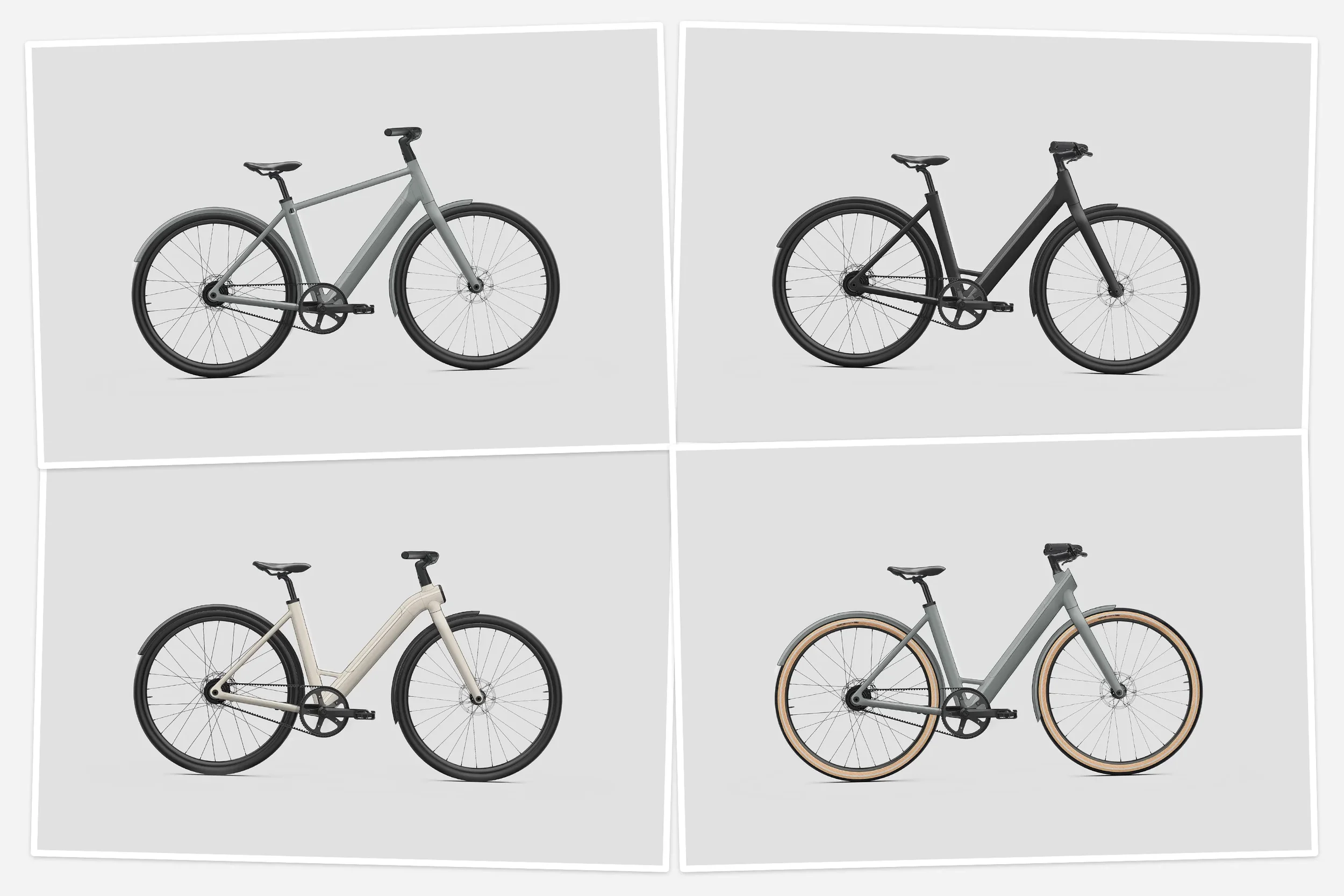

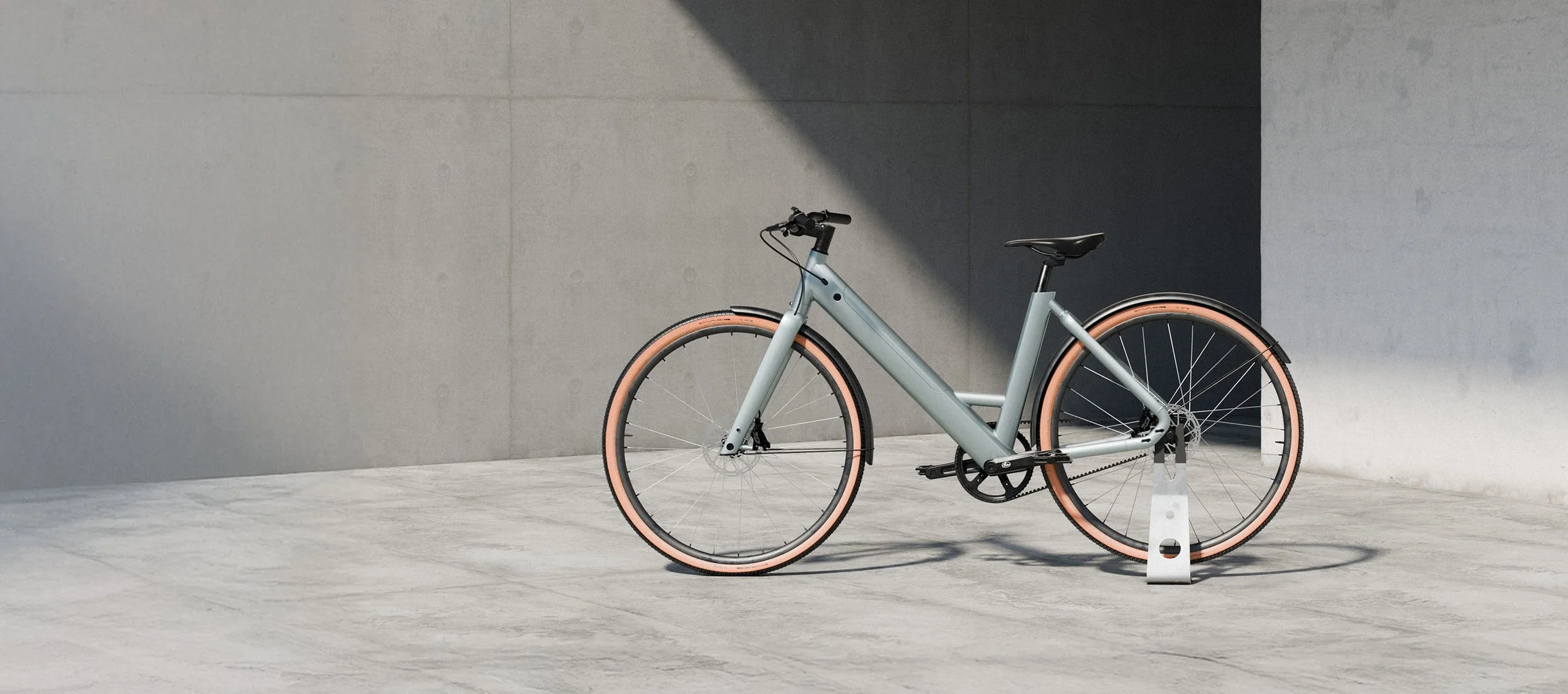

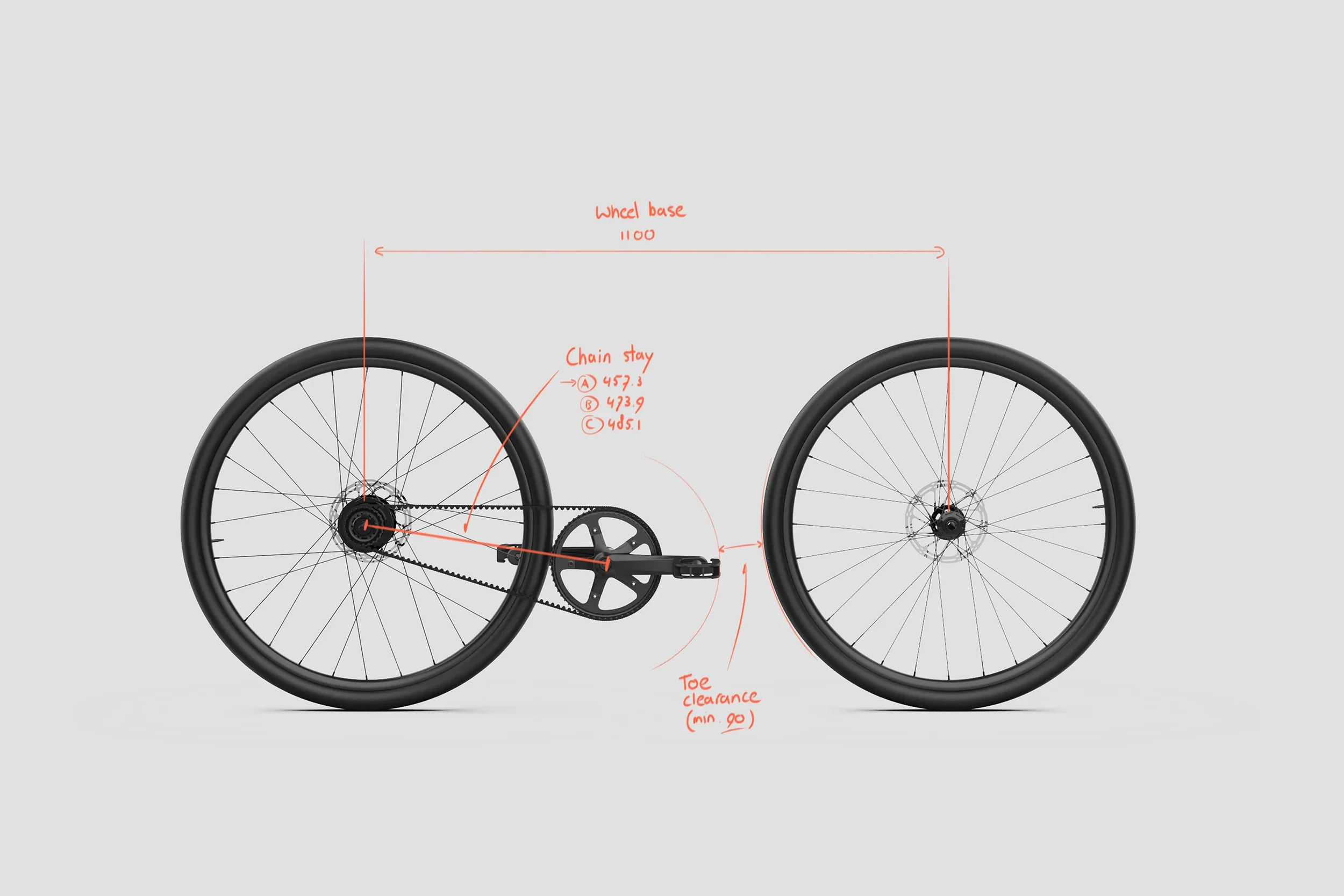

The design strategy began with detailed market analysis, which revealed the need for an urban commuter bike with recreational flexibility. From this, the mission statement emerged: a commuter e-bike optimized for city use, but also suited for light off-road rides. Ergonomics and geometry were carefully defined — including wheelbase, chain stay, and tube angles — to balance comfort, stability, and agility. The design featured a distinctive low-step frame for accessibility, hidden cables for a sleek profile, and thoughtful details such as a reflective front fork coating for visibility. Renders and prototypes refined the look into something both sophisticated enough for work commutes and rugged enough for weekend exploring.
The outcome:

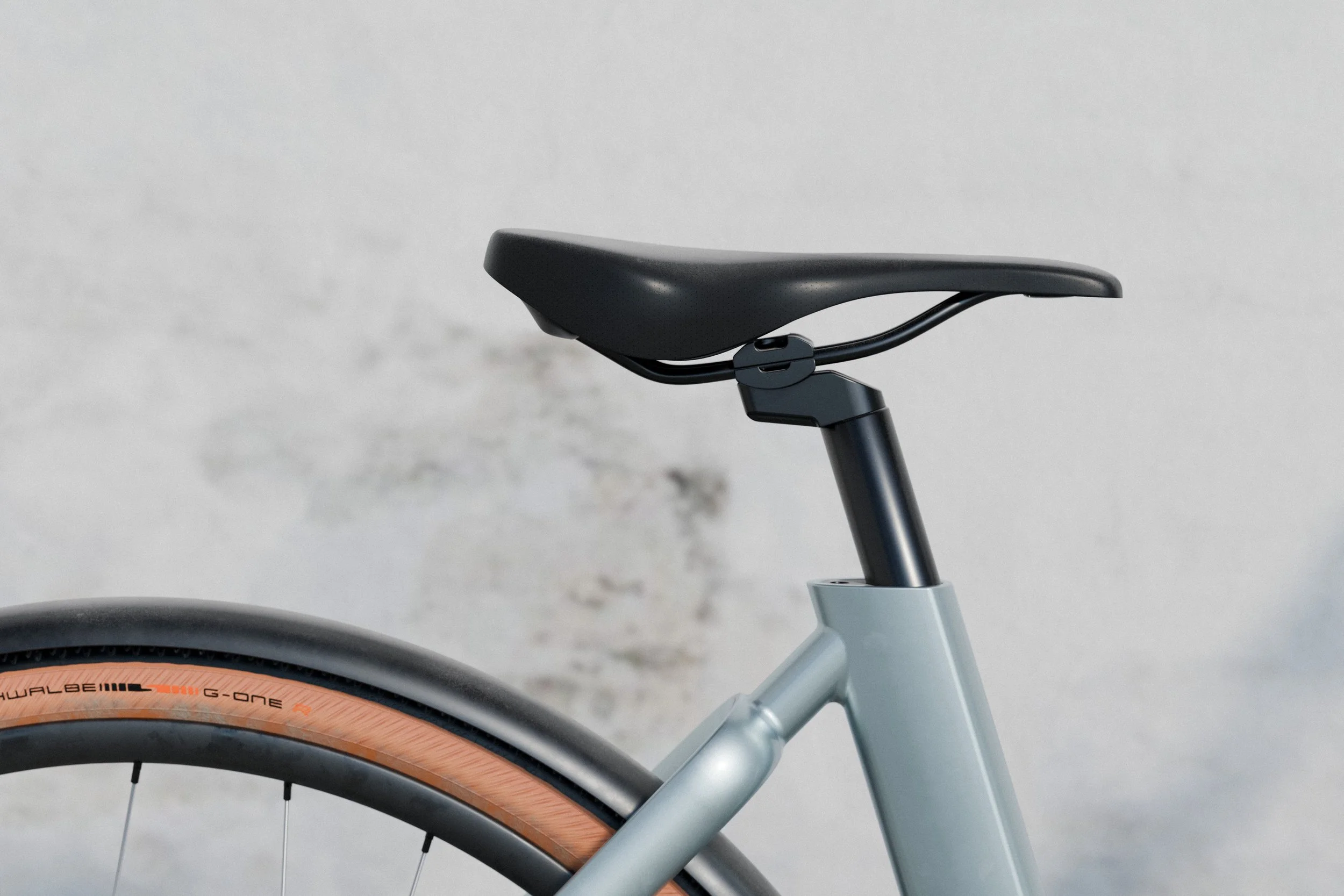

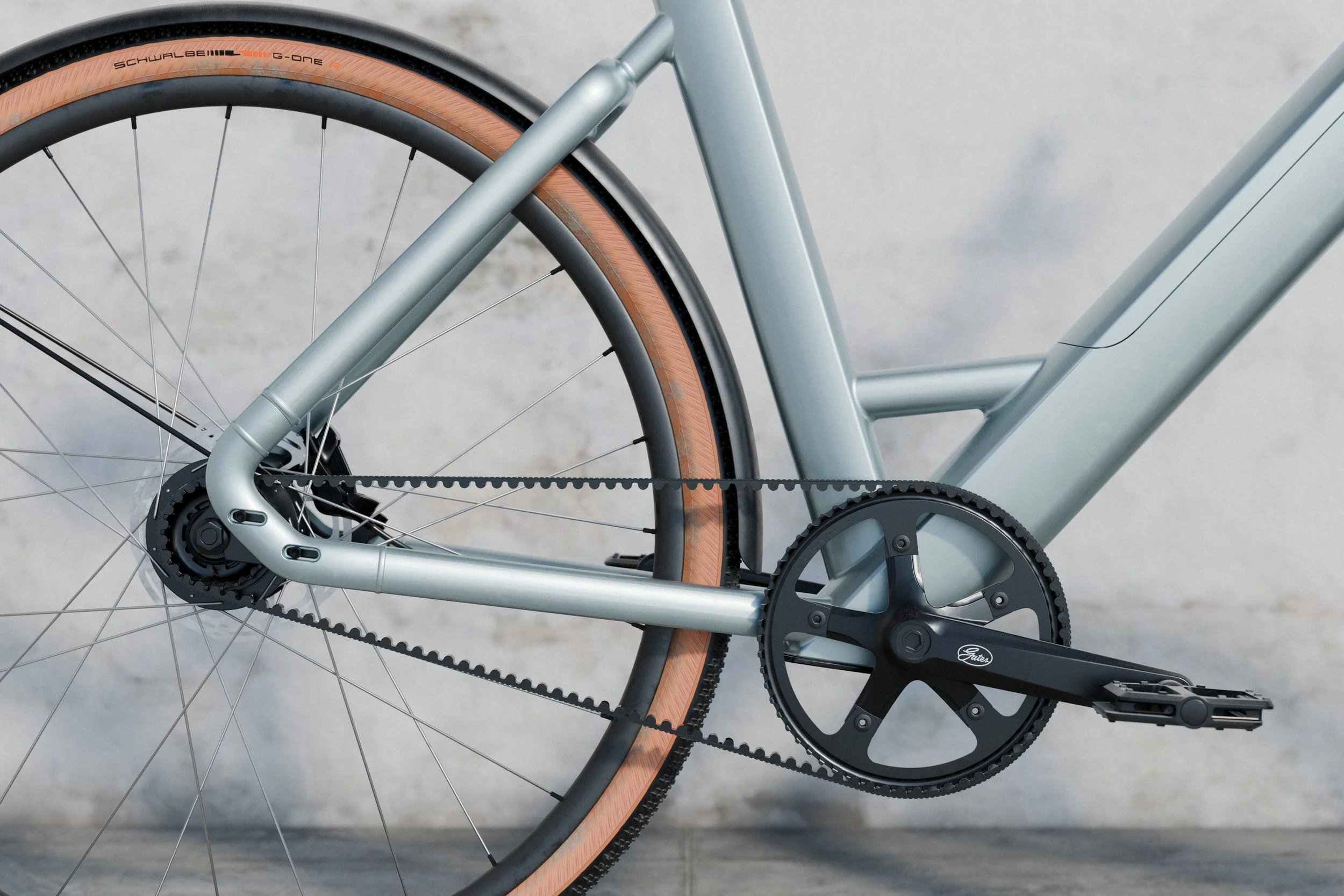

Engineering focused on integrating performance components into a stylish yet practical frame. The e-bike incorporated a 350W rear hub motor with a torque sensor, a Gates belt drive for low-maintenance reliability, and a 36V 10Ah battery using 21700 cells to achieve a 70km range. Mechanical engineering refined solutions like a chain stay system for precise belt tension adjustment and a seat tube with an integrated clamp. Several technical challenges
were overcome in optimizing geometry and component integration without compromising aesthetics. Hidden cabling, clean intersections of the battery with the frame, and ergonomic design all contributed to a refined yet durable e-bike. The result was a design that merges industrial design sophistication with robust engineering — a concept currently in prototyping and tailored to the evolving demands of the American urban cyclist.
